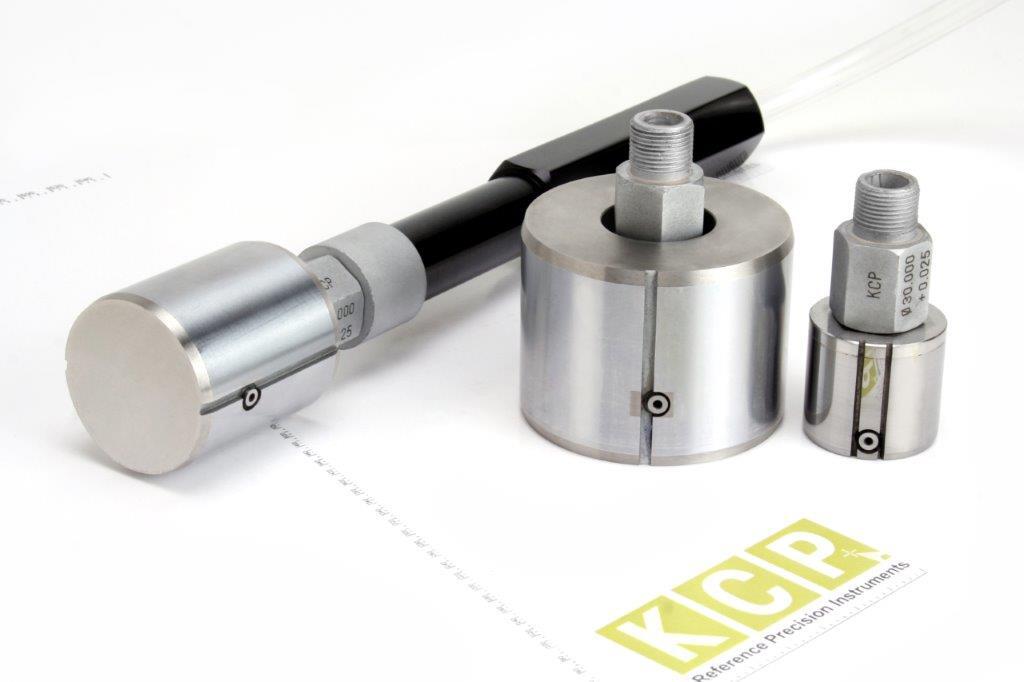

Air Plug Gauge
We offer Air Plug Gauges for quick and easy checking of bore size - Through bore, Blind bore, Stepped bore, taper & Ovality.
 | 3mm to 150mm in steel 8mm to 60mm in carbide |
 | Customization Available |
 | Carbide | Steel |
 | Metric & Imperial |
Specifications
➤ Product Information
- KCP Air Plug Gauges are provided with pair of Master Setting Ring (higher & lower).
- Adjustable depth collar can be provided for checking specific height.
- Offered with 2, 3 & 4 measuring jets as per requirement.
- Also offered to suit different makes, as per requirement.

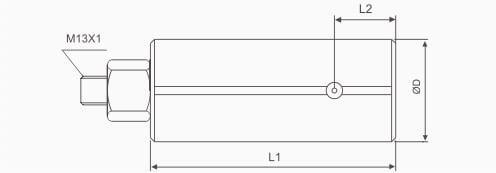

➤ Technical Specifications
Material | Range | L1 | L2 |
|---|---|---|---|
| From To | Through hole Blind hole | Through hole Blind hole | |
| Steel | Ф3 Ф8 | 30 30 | 9 4 |
| Ф8 Ф15 | 40 30 | 13 4 | |
| Ф15 Ф150 | 40 30 | 13 5.5 | |
| From To | Through hole Blind hole | Through hole Blind hole | |
| Carbide | Ф8 Ф15 | 30 30 | 13 4 |
| Ф15 Ф60 | 30 30 | 13 5.5 |
* All figures in mm
KCP Air Gauges
KCP Air Gauges are indispensable tool for precision batch and mass production. As tolerances have gotten tighter on the shop floor, air gauging is often the only way to make the check fast and easy for the operator.
Air gauge system is a non-contact gauging system and thereby it has longer life due to minimal frictional wear.
Two setting masters ensure linearity online as well as magnification.
KCP offers a wide range of Air gauging with provision of 2 jets, 3 jets & 4 jets configurations to air probes making it best suitable for internal as well as external dimensions, average diameter, taper, ovality & face run-out.
Air gauges are also suitable for checking relative dimension such as flatness, parallelism, center distance, squareness & concentricity.
KCP Air Gauges are indispensable tool for precision batch and mass production. As tolerances have gotten tighter on the shop floor, air gauging is often the only way to make the check fast and easy for the operator.
Air gauge system is a non-contact gauging system and thereby it has longer life due to minimal frictional wear.
Two setting masters ensure linearity online as well as magnification.
KCP offers a wide range of Air gauging with provision of 2 jets, 3 jets & 4 jets configurations to air probes making it best suitable for internal as well as external dimensions, average diameter, taper, ovality & face run-out.
Air gauges are also suitable for checking relative dimension such as flatness, parallelism, center distance, squareness & concentricity.
KCP Air Gauge Features
| Very high accuracy i.e. ends of assumptions |
| No subjectivity |
| Repeatability |
| Ease of operation |
| Self-cleaning ability & |
| Very fast response time |
KCP Air Plug Gauge are supplied with Calibration Certificate issued from its accredited calibration lab.
