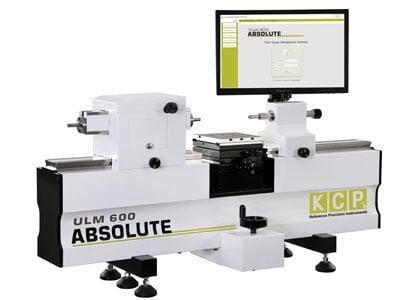

Universal Length Measuring Machine
ULM is useful for measurement of various types of limit gauges, thread gauges, spline gauges, measuring instruments & standards etc.
KCP's ULM is one of the highly accurate and versatile measuring equipment designed, developed and manufactured in KCP's world class manufacturing facility to achieve excellence with zero tolerance manufacturing concept supported with user friendly software for quick & reliable measurements.
 | 300mm, 600mm & 1000mm |
 | Metric & Imperial |
Specifications
Robust, stable & unique long-lasting design manufactured with engineering excellence
Constant measuring force over the measuring head with entire measuring range.
High quality electronic encoder is used to ensure consistent accurate measurement.
Total gauge management software for Measurement, Evaluation & Reporting.
Complying Abbe's comparator principle, ensures highly precise & accurate measurement.
High precision rigid worktable with five axis movements enables quick & correct positioning.
Complete set of accessories with versatile design, most suitable to meet wide range of measuring requirements.
User friendly easy navigation system that saves clicks and gives quick results.
| Plain Gauges | Plain Plug Gauge, Plain Ring Gauge, Width Gauge, Snap gauge, ID/OD Masters, Plain Taper Ring/Plug gauge, Measuring Pin/wires |
| Thread/Spline Gauges | Thread Plug Gauge, Thread Ring Gauge, Taper Thread Ring/Plug, Spline Plug gauge, Spline Ring Gauge |
| Measuring Instrument | External/ Internal Micrometers, 3 point Micrometer, Stick Micrometer, Micrometer Head, Plunger Dial, Lever Dial, Bore Gauges, Probes |
| Standards | Rectangular Gauge Block, Length Bar, Setting Standard |
TECHNICAL DATA | ULM300 | ULM600 | ULM1000 |
|---|---|---|---|
| Range: | |||
| 0-100 mm 100-300 mm | 0-100 mm 100-600 mm | 0-100 mm 100-1000 mm |
| Application Range: | |||
| 330 mm 0.5 - 300 mm | 630 mm 0.5 - 600 mm | 1030 mm 0.5 - 1000 mm |
| Resolution (switchable) | 0.01µm, 0.1 µm,1µm | ||
| Repeatability | 0.05 µm | ||
| Display | Computer added screen display, TFT/LED, industrial computer with software |
| Measuring Uncertainty (µm) | 0.25+0.2Lx10-3 where ‘L’ in mm |
| Measuring Force | 0, 1.5N, 2.5N |
| Worktable: | |||
| ±25mm ±25mm 100 mm ±3° ±4° | ±25mm ±25mm 100 mm ±3° ±4° | ±25mm ±25mm 100 mm ±3° ±4° |
| Environmental Requirement: | |||
|
| 15 °C - 35 °C 30-80% | 15 °C - 35 °C 30-80% |
| Electrical requirements | 220VAC, 50HZ | 220VAC, 50HZ | 220VAC, 50HZ |

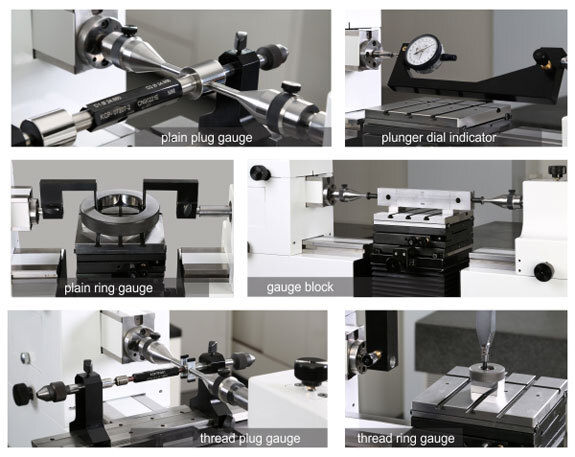

Applications

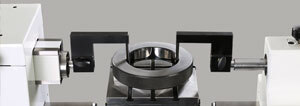

 | Plain Gauges |
| Thread/Spline Gauges |
| Measuring Instrument |
| Standards |
Available Models
| ULM 300 |
| ULM 600 |
| ULM 1000 |
KCP Universal Length Measuring Machine are supplied with Calibration Certificate issued from its accredited calibration lab.
