Long Series Gauge Blocks
Manufactured from special grade of Alloy steel, for greater wear resistance and for superior surface finish.
 | 100mm to 1000mm - standard sets |
 | Custom sizes up to 1000mm |
 | Steel |
 | Metric & Imperial |
 | Covers all Grades i.e. Grade 'K', Grade'0', Grade '1' & Grade '2' |
 | ISO 3650 / DIN 861 |
Specifications
Product Information
| Standard Set | Size in mm | Qty (Pcs.) |
|---|---|---|
| M8 | 100, 125, 150, 175, 200, 250, 300, 400, 500 | 08 |
| M5 | 600, 700, 800, 900, 1000 | 05 |
- Gauge Blocks are available in standard as well as customized sizes.
- Along with standard sets, individual gauge block is also available.
- Holes are provided at both ends of gauge blocks for combinations with the help of gauge block clamp.

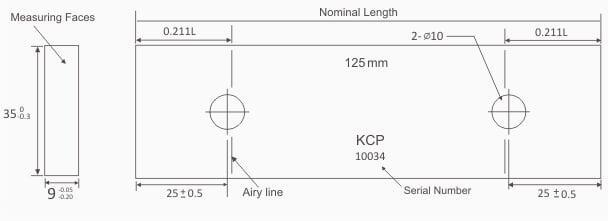

Standard Dimension of Gauge Blocks from 125mm to 1000mm
Unique Features
- Superior wringing quality
- Highly accurate, very low deviation from flatness, surface finish & nominal length
KCP Long Series Gauge Blocks are supplied with Calibration Certificate issued from its accredited calibration lab.

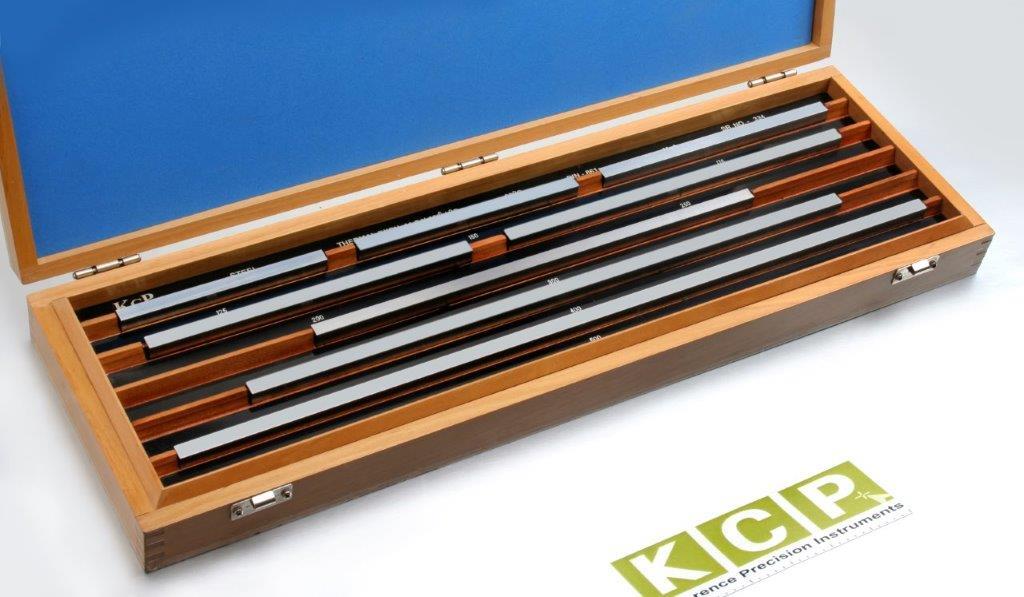

All our Length standard products and accessories are delivered in quality wooden casing, appended with; Calibration Certificate traceable to National Standards and Instruction Manual on the use and care.
