Air Ring Gauge

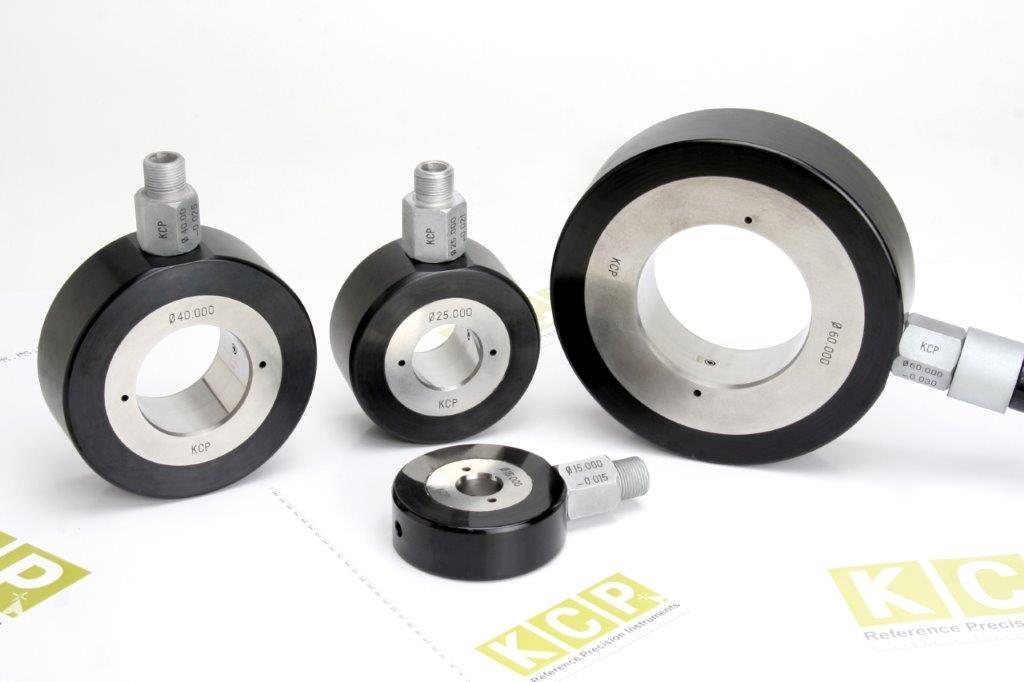

Our Air Ring Gauges are supplied in several styles for external measuring. Two and three jet rings are most common, used for checking outside diameters for sizes out of round conditions.
 | 4 mm to 100 mm in steel 4 mm to 60 mm in carbide |
 | Customization Available |
 | Carbide | Steel |
 | Metric & Imperial |
Specifications
➤ Product Information
- KCP Air Ring Gauges are provided with pair of Master Setting Plug (higher & lower).
- Offered with 2, 3 & 4 measuring jets as per requirement.
- Also offered to suit different makes, as per requirement.

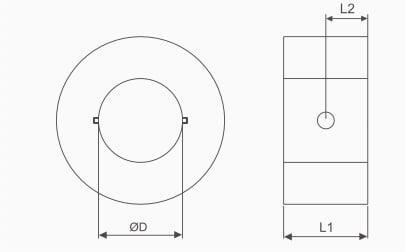

➤ Technical Specifications
| Material | Range | L1 | L2 |
| From | To | Through hole | Blind hole | Through hole | Blind hole | |
| Steel | Ф4 | Ф35 | 20 | 20 | 10 | 5 |
| Ф35 | Ф100 | 25 | 25 | 12.5 | 5 |
| Material | Range | L1 | L2 |
| From | To | Through hole | Blind hole | Through hole | Blind hole | |
| Carbide | Ф4 | Ф8 | 20 | 20 | 10 | 4 |
| Ф8 | Ф60 | 20 | 20 | 10 | 5 |
* All figures in mm
KCP Air Gauges
KCP Air Gauges are indispensable tool for precision batch and mass production. As tolerances have gotten tighter on the shop floor, air gauging is often the only way to make the check fast and easy for the operator.
Air gauge system is a non-contact gauging system and thereby it has longer life due to minimal frictional wear.
Two setting masters ensure linearity online as well as magnification.
KCP offers a wide range of Air gauging with provision of 2 jets, 3 jets & 4 jets configurations to air probes making it best suitable for internal as well as external dimensions, average diameter, taper, ovality & face run-out.
Air gauges are also suitable for checking relative dimension such as flatness, parallelism, center distance, squareness & concentricity.
KCP Air Gauge Features
| very high accuracy i.e. end of assumptions |
| no subjectivity |
| repeatability |
| ease of operation |
| self-cleaning ability & |
| very fast response time |
KCP Air Ring Gauge are supplied with Calibration Certificate issued from its accredited calibration lab.
