Snap Gauges

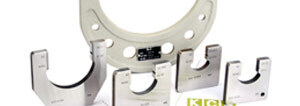

Our Snap Gauges are designed for quick inspection of outside diameter of work pieces.
 | 1- 400mm |
 | Customization Available |
 | Carbide | Steel |
 | Metric & Imperial |
 | IS: 3455 (standard for manufacturing tolerance) |
Specifications
Product Information

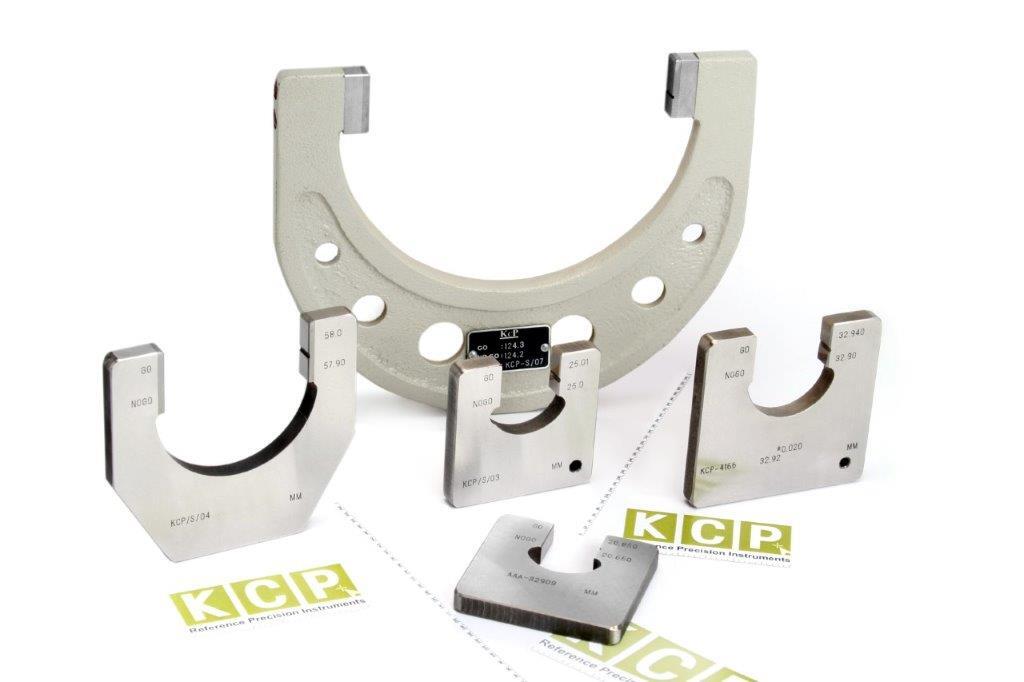

- We offer Snap gauges in Steel and Carbide. We also make gauges in Steel with measuring faces in Carbide.
- We also manufacture Snap Gauges to relevant I.S., B.S. and DIN standards based on customer requests from 1- 400mm diameter.
- Single ended and double ended types of snap gauges are available with proper marking of ‘GO’, NOGO & gauge identification.
- They are also designed as per customer specification for checking of length, thickness & groove diameters etc.
Technical Specifications
| Type | Range | ‘GO’ Length | ‘NO GO’ Length | Thickness |
|---|---|---|---|---|

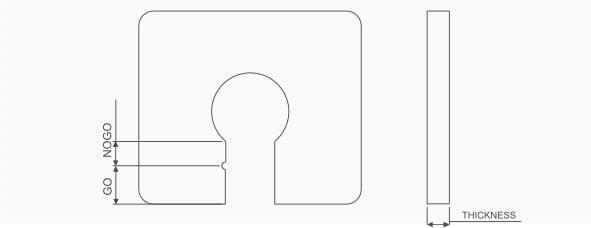

| Single Ended Snap Gauge Steel Blank (Carbide tipped /Steel) | 1 – 10 | 12 | 7 | 6 |
* All figures in mm
| Type | Range | ‘GO’ Length | ‘NO GO’ Length | Thickness |
|---|---|---|---|---|
| Single Ended Snap Gauge Steel Blank (Carbide tipped /Steel) | 10-16 16-25 25-32 32-45 | 12 12 12 16 | 7 7 7 9 | 6 8.5 8.5 8.5 |
* All figures in mm
| Type | Range | ‘GO’ Length | ‘NO GO’ Length | Thickness |
|---|---|---|---|---|

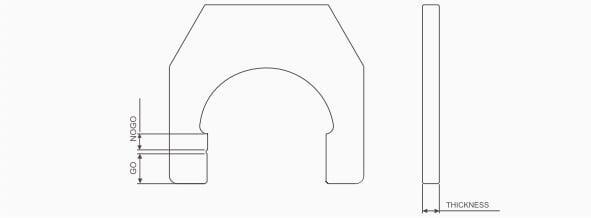

| Single Ended Snap Gauge Steel Blank (Carbide tipped /Steel) | 45-60 | 16 | 9 | 8.5 |
* All figures in mm
| Type | Range | ‘GO’ Length | ‘NO GO’ Length | Thickness |
|---|---|---|---|---|

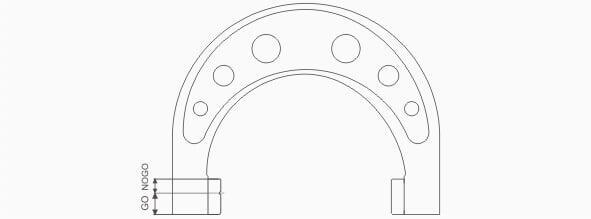

| Single Ended Snap Gauge C.I. Blank (Carbide tipped /Steel) | 60-150 150-400 | 15 18 | 10 12 | 10 10 |
* All figures in mm
| Type | Range | ‘GO’ Length | ‘NO GO’ Length | Thickness |
|---|---|---|---|---|

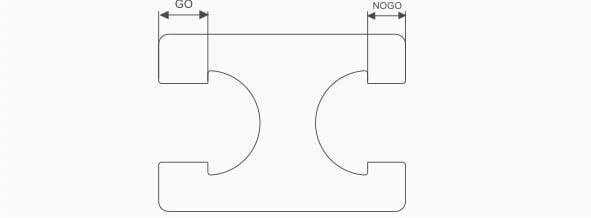

| Double Ended Snap Gauge Steel Blank (Carbide tipped /Steel ) | 1-10 10-16 16-25 25-32 32-40 40-50 50-65 | 8 10 12 14 16 18 20 | 5 68 10 12 12 13 | 6 8.5 8.5 8.5 8.5 8.5 8.5 |
* All figures in mm
Unique Features
 | High Durability |
| High Tensile Strength |
KCP Snap Gauges are supplied with Calibration Certificate issued from its accredited calibration lab.
