Gauges for evolved Metrology
Gauge manufacturing is a true engineering art within the realm of dimensional metrology, and it stands as KCP's greatest strength. Our extensive product range includes precision measuring gauges such as length standards, calibration equipment, limit gauges, and air gauges. We craft these gauges using high-quality materials like carbide, steel, and ceramic to ensure accuracy and durability.
Products ⇩
Gauge Blocks
 | 0.3mm to 100mm - standard sets |
 | Custom sizes 0.3mm to 100mm |
 | Carbide | Steel | Ceramic |
Long Series Gauge Blocks
| 100mm to 1000mm - standard sets |
| Custom sizes up to 1000mm |
| Steel |
Length Bars
| 25mm to 1000mm - standard sets |
| Custom sizes up to 1000mm |
| Steel |
| Up to 300mm |
| Customization available |
| Carbide | Steel |
| Standard |
| Custom angle available |
| Carbide | Steel |
Caliper Checker
| up to 1000mm |
| Customization available |
| Carbide | Steel | Ceramic |
Internal Micro Checker
| up to 600mm | |
 |
| |
| Carbide | Steel | Ceramic |
Depth Micro Checker
| up to 300mm | |
| Metric & Imperial | |
| Carbide | Steel | Ceramic |
| 0 - 25mm | |
 |
| |
| Carbide | Steel | Ceramic |
| 0-150, 0-200, 0-300mm |
| Customization Available |
| Carbide | Steel |
Air Plug Gauge
| 3mm to 150mm in steel 8mm to 60mm in carbide |
| Customization available |
| Carbide | Steel |
Air Ring Gauge
| 4 mm to 100 mm in steel 4 mm to 60 mm in carbide | |
|
| |
| Carbide | Steel |

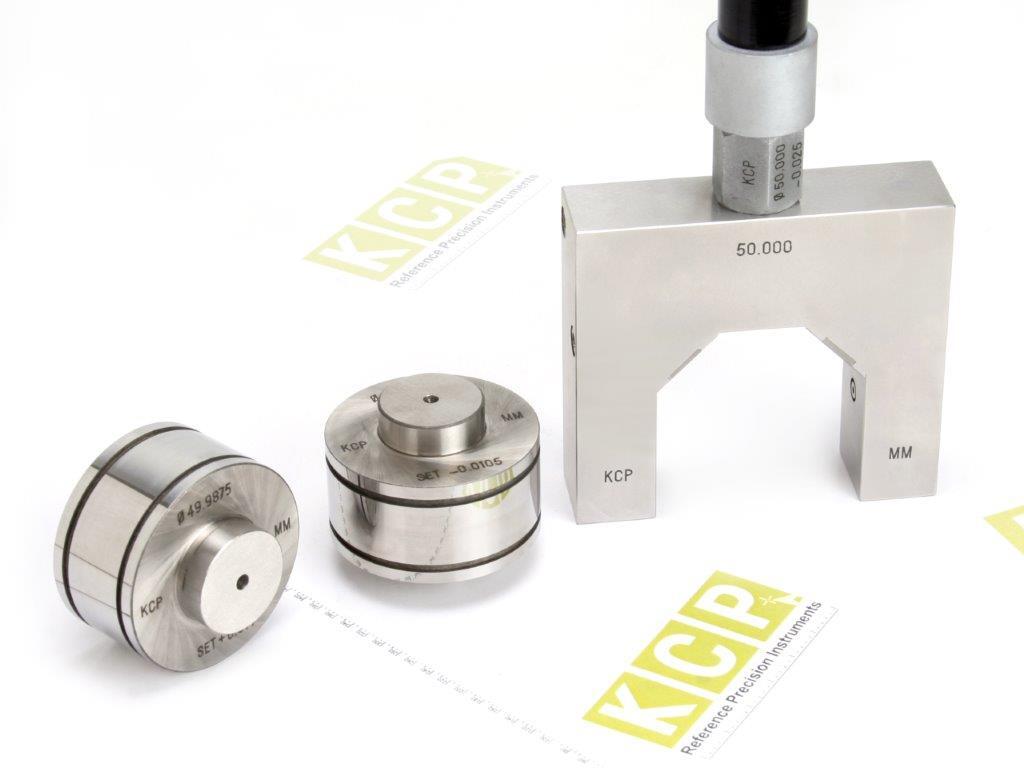

Air Snap Gauge
| 10mm to 150mm |
| Customization available |
| Carbide | Steel |
Analog Display Unit
- Works on null balance pressure system
- Operating pressure: 43 psi-60 psi (3-4 bar)
- Available in two resolutions
I) L.C. 0.0005 mm, Range: ±0.02 mm
ii) L.C. 0.001 mm, Range: ±0.04 mm
Air Electronic Display Unit
- Single /Tri Color Six Digit Display
- Absolute/Comparative Measurement
- Auto Calibration Facility
- Range/LC: ±2000 µm/1 µm, ±200 µm/0.5 µm, ±200 µm/0.10 µm
- Metric/Imperial measurement
- RS 232 Output
- Single/ Tri Color LED indicating component tolerance status
Air Electronic Column Unit
- Single /Tri Color Six Digit Display
- Absolute/Comparative Measurement
- Auto Calibration Facility
- Selectable range and least count
- Metric/Imperial measurement
- RS 232 Output
- Single/ Tri Color LED indicating component tolerance status
Plain Plug Gauges
| 1- 400mm diameter |
| Customization available |
| Carbide | Steel |
Plain & Master Setting Ring Gauges
| 1- 300mm diameter | |
|
| |
| Carbide | Steel |
Snap Gauges
| 1- 400mm |
| Customization available |
| Carbide | Steel |
Dial Snap Gauges
| up to 700mm |
| Customization available |
| Carbide |
Width Gauges
| 0.5- 100mm | |
|
| |
| Carbide | Steel |
Measuring Pins
| 0.3 - 20mm |
| Customization available |
| Carbide | Steel |
