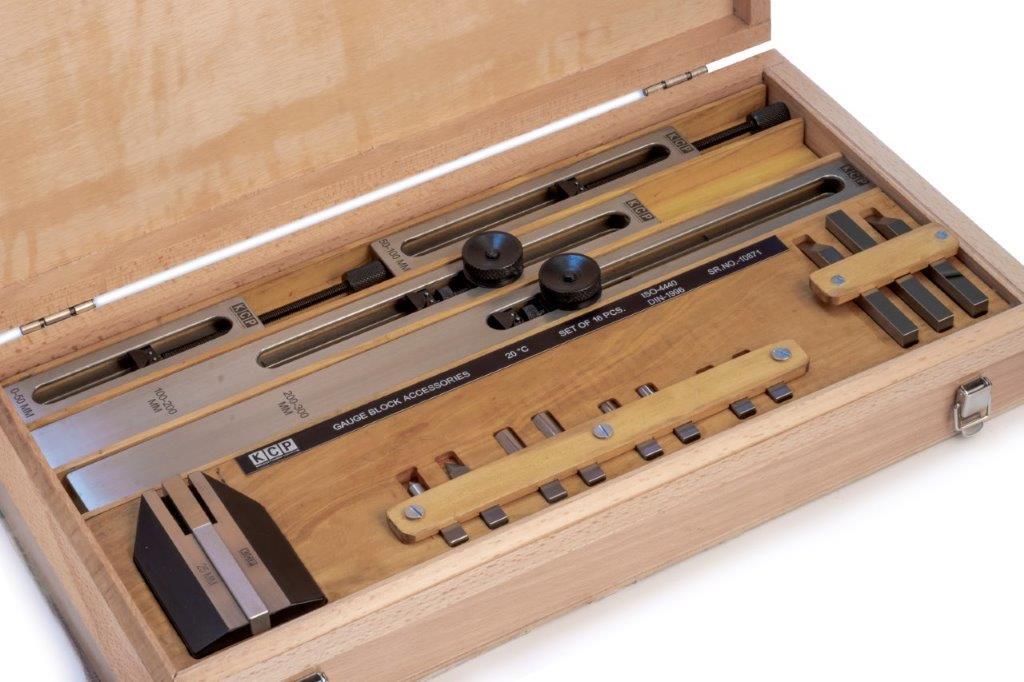

Gauge Block Accessories
To expand the variety of rectangular gauge block applications, we offer the Gauge Block
Accessories Set. By assembling the items in the set, your gauge blocks are easily and quickly changed into a precision measuring system.
 | Up to 300mm |
 | Customization available |
 | Carbide | Steel |
 | Metric & Imperial |
 | IS : 4440 |
Specifications
These accessories are designed to extend the applications of Gauge Blocks in production & inspection.
Ideal for -
- Setting of internal & external measurement of gauges.
- Setting of Bore Gauges
- Height Marking
- Accurate Graduation
| Description | 7 Pcs. Set | 16 Pcs. Set |
|---|---|---|
| Base (Steel) | 01 | 01 |
| Tungsten Carbide Scriber | 01 | 01 |
| Tungsten Carbide Tipped Centre Point | - | 01 |
| Tungsten Carbide Large Measuring Jaw | 02 | 02 |
| Tungsten Carbide Parallel Measuring Jaw | - | 01 |
| Tungsten Carbide 2.5 mm Radius Jaw | - | 02 |
| Tungsten Carbide 5 mm Radius Jaw | - | 02 |
| Tungsten Carbide 6 mm Radius Jaw | - | 02 |
| Holder (Steel) 0-50 mm | 01 | 01 |
| Holder (Steel) 50-100 mm | 01 | 01 |
| Holder (Steel) 100-200 mm | 01 | 01 |
| Holder (Steel) 200-300 mm | - | 01 |

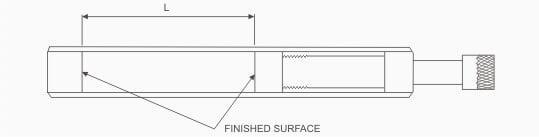

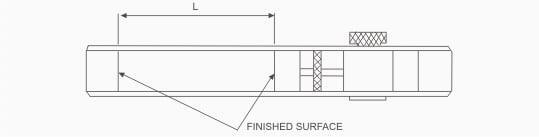

Gauge Block Holder
| Range | L |
|---|---|
| 0-50 mm | 50 |
| 50-100 mm | 100 |
Gauge Block Holder
| Range | L |
|---|---|
| 100-200 mm | 200 |
| 200-300 mm | 300 |

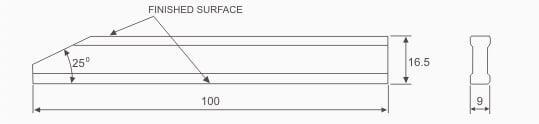

Large Measuring Jaw

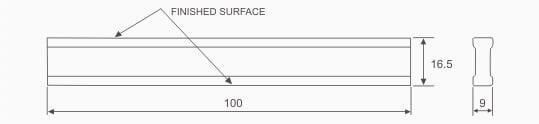

Plain Measuring Jaw

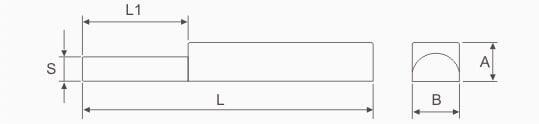

Half Round Jaw
| Size ‘S’ | A | B | L1 | L |
|---|---|---|---|---|
| 2.5 | 7.5 | 9 | 5 | 40 |
| 5.0 | 7.5 | 9 | 15 | 50 |
| 6.0 | 7.5 | 9 | 20 | 55 |
* All figures in mm

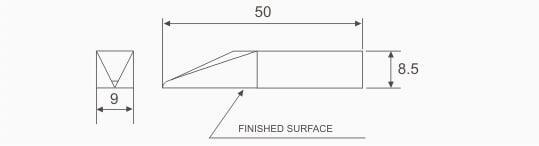

Scriber

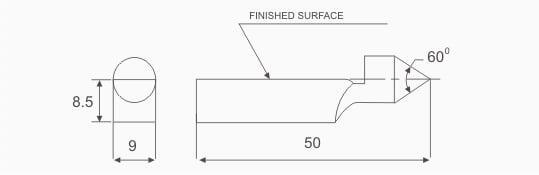

Centre point
| Base |

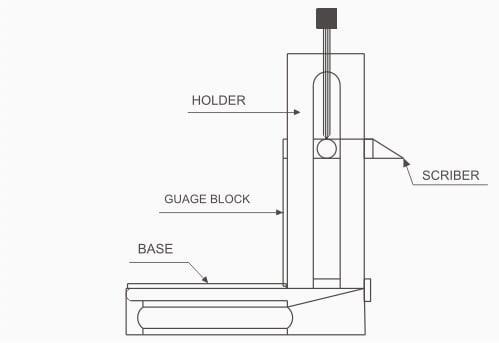

Setting of Height Gauge for height marking
The combination for Height Gauge is done with the help of Gauge Block, Gauge Block Holder, Base and Scriber which can be used for height marking.

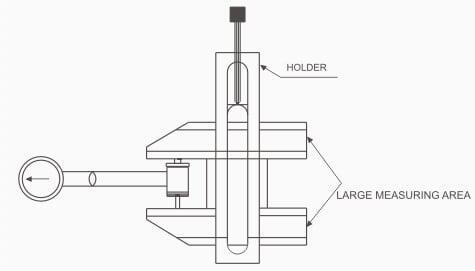

Setting of Bore Gauge
The combination for Bore Gauge setting is done with the help of Gauge Block, Gauge Block Holder, and pair of Large Measuring Jaw which can be used for accurate setting of Bore Gauge

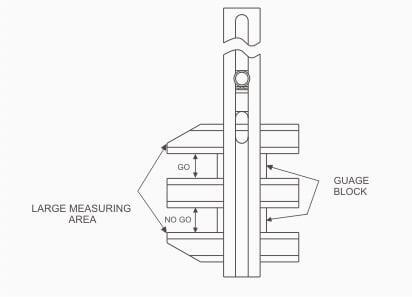

Setting of Snap Gauge
The combination is done with the help of Gauge Blocks, Gauge Block Holder, Pair of Large Measuring Jaw and Plain Jaw which can be used as a Snap Gauge.

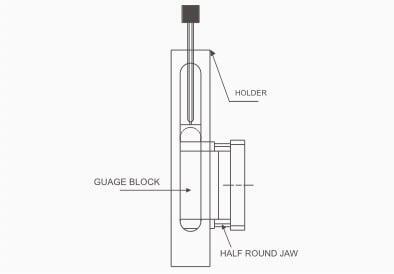

Setting for Internal Measurement
The combination is done with the help of Gauge Blocks, Gauge Block Holder and Radius Jaw, which can be used to check inside diameter.

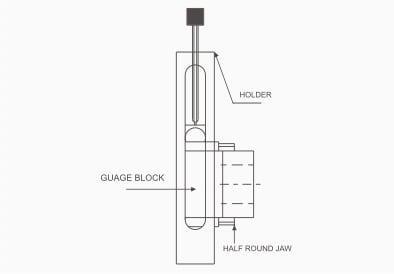

Setting for External Measurement
The combination is done with the help of Gauge Blocks, Gauge Block Holder and Radius Jaws which can be used to check outside diameters.
Unique Features
| All wearable parts are made of carbide |
| Enables quick and easy assembly of equipment's or gauges |
Saves repetitive expenditure on gauges |
KCP Gauge Block Accessories are supplied with Calibration Certificate issued from its accredited calibration lab.
All our Length standard products and accessories are delivered in quality wooden casing, appended with; Calibration Certificate traceable to National Standards and Instruction Manual on the use and care.
