Comparator Stand

We constantly explore innovative ways for achieving better results.

Comparator Stands are basic building-blocks for the assembly of special-purpose, precision-measuring equipment. By mounting precision-measuring instruments onto the stands, all types of measurement including comparative measurement is possible.

	0-150, 0-200, 0-300mm
	Customization Available
	Carbide \| Steel

Specifications

Product Information

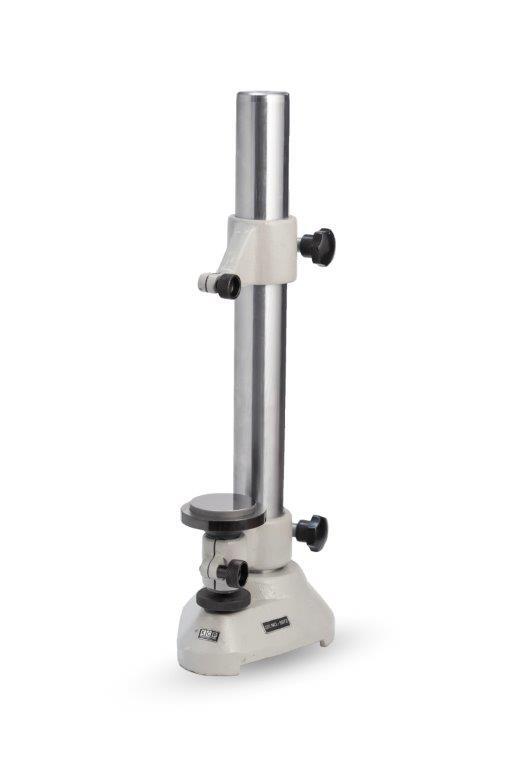

The Comparator Stands consist of a very stable, castiron base and an upright column with a mounting bracket that features fine adjustment.
Standard Stands are furnished with steel hardened & lapped base with diameter 8mm dial gauge mounting arm.

Technical Specifications

Range	Mounting Hole	Worktable	Material
0-150 mm with Fine adjustment	ø 8 mm, ø28 mm & ø30mm	ø60 mm	Steel / Carbide
0-200 mm with Micro Fine adjustment	ø8 mm	60 x 60 x 6 mm 80 x 80 x 16 mm	Steel / Carbide Steel
0-300 mm with Micro Fine adjustment	ø8 mm	60 x 60 x 6 mm 80 x 80 x 16 mm	Steel / Carbide Steel

Weight of Comparator Stand - 13kg
All Work tables are available in Plain or Serrated texture.
Spare Comparator Base made of Steel / Carbide in Plain / Serrated is also available in following sizes -
1) ø 60 x 6 mm 2) ø 80 x 8 mm 3) 60 x 60 x 6 mm

Unique Features

Quick and reliable calibration

Greater wear resistance

KCP Comparator Stand are supplied with Calibration Certificate issued from its accredited calibration lab.
