Air Snap Gauge
Air snaps are designed for those difficult to reach or "between centers" diameter measurements. Often, air snaps gage a part while it is engaged in the machine tool. Also, Snap gages are ideal for production settings where specific diametrical or thickness measurements must be repeated frequently with precision and accuracy.
 | 10mm to 150mm |
 | Customization Available |
 | Carbide | Steel |
 | Metric & Imperial |
Specifications
➤ Product Information
- Range available from 10 mm to 150 mm with carbide resting pads.
- Provided with Master Setting Plug (higher & lower).
- Also offered to suit different makes, as per requirement.
➤ Technical Specifications

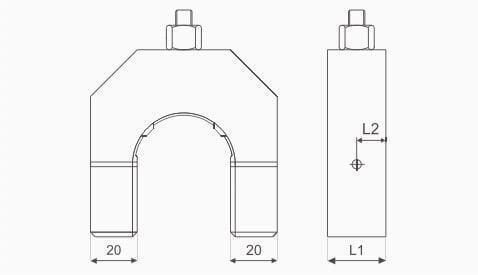

| Material | Range | L2 | L2 |
| Steel with | From | To | Through hole | Blind hole | Through hole | Blind hole |
| Carbide rest | Ф10 | Ф150 | 20 | 20 | 10 | 5.5 |
* All figures in mm
KCP Air Gauges
KCP Air Gauges are indispensable tool for precision batch and mass production.
As tolerances have gotten tighter on the shop floor, air gauging is often the only way to make the check fast and easy for the operator.
Air gauge system is a non-contact gauging system and thereby it has longer life due to minimal frictional wear.
Two setting masters ensure linearity online as well as magnification.
KCP offers a wide range of Air gauging with provision of 2 jets, 3 jets & 4 jets configurations to air probes making it best suitable for internal as well as external dimensions, average diameter, taper, ovality & face run-out.
Air gauges are also suitable for checking relative dimension such as flatness, parallelism, center distance, squareness & concentricity.
KCP Air Gauge Features
| very high accuracy i.e. end of assumptions |
| no subjectivity |
| repeatability |
| ease of operation |
| self-cleaning ability & |
| very fast response time |
KCP Air snap gauge are supplied with Calibration Certificate issued from its accredited calibration lab.
