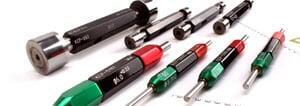

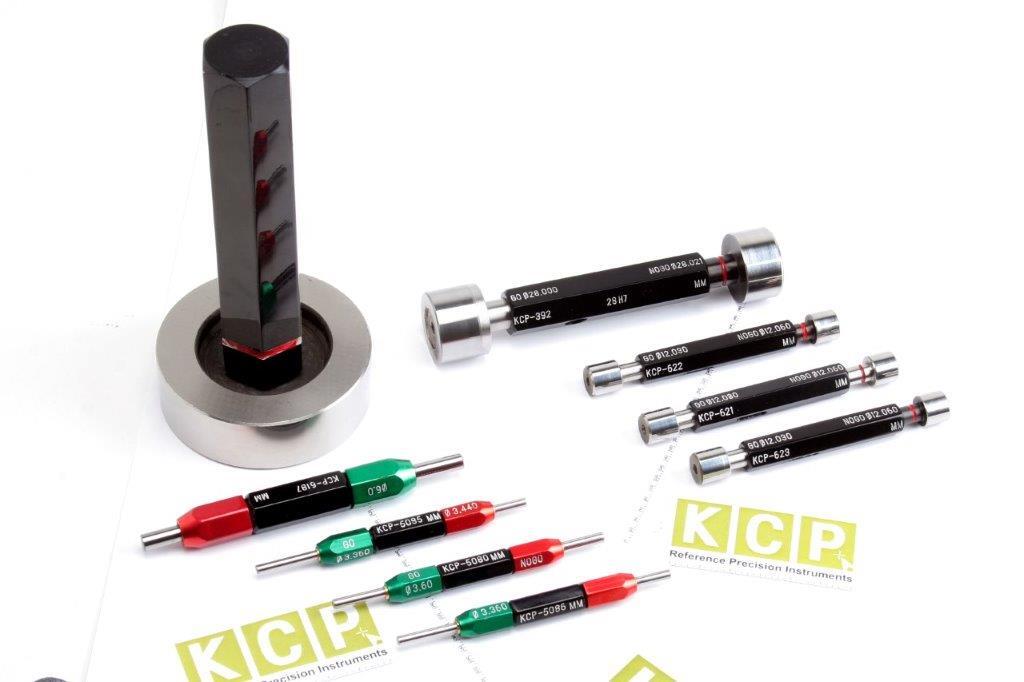

Plain Plug Gauges
They are ideal for inspecting holes or slots (pass/fail). They are also used as Masters for setting Micrometers, Vernier Calipers etc.
 | 1- 400mm diameter |
 | Customization Available |
 | Carbide | Steel |
 | Metric & Imperial |
 | IS: 3455 (standard for manufacturing tolerance) |
Specifications
Product Information
- We offer a choice of choosing between GO and NO-GO both made in Tungsten Carbide/Steel and GO in Tungsten Carbide with NO-GO in Steel. The latter type is more popular owing to the cost advantage.
- We also manufacture Plain Plug Gauges to relevant I.S., B.S. and DIN standards based on customer requests from 1- 400mm diameter.
- We are also specializing in non-standard designs such as extra lengths, multiple diameters, air grooves, pilots, depth steps and relieved NO-GO ends.
Technical Specifications
| Type | Range |
|---|---|

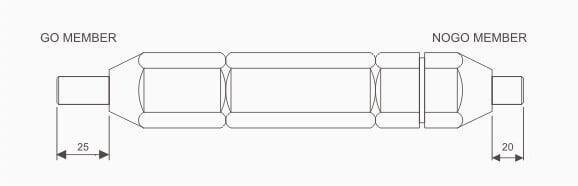

| Reversible | Ф 0.5-8 |
* All figures in mm
| Type Range | Ф8-10 | Ф10-14 | Ф14-18 | Ф18-24 | Ф24-30 | Ф30-40 |
|---|---|---|---|---|---|---|

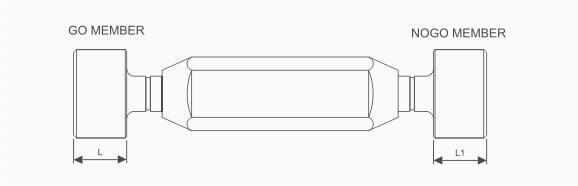

| Taper Shank L/L1 (Carbide) | 10/10 | 10/10 | 15/10 | 15/15 | 15/15 | 15/15 |
| L/L1 (Steel) | 10/10 | 12/10 | 14/10 | 16/15 | 18/15 | 20/15 |
* All figures in mm
| Type Range | Ф40-50 | Ф 50-65 | Ф65-110 | Ф110-120 |
|---|---|---|---|---|

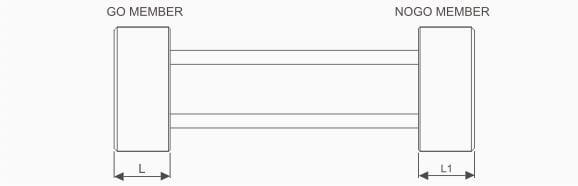

| Trilok L/L1 (Carbide) | 20/18 | 20/18 | - | - |
| L/L1 (Steel) | 25/18 | 30/18 | 35/25 | 40/25 |
* All figures in mm
| Type Range | Ф50-100 | Ф100-200 | Ф200-300 | Ф300-400 |
|---|---|---|---|---|

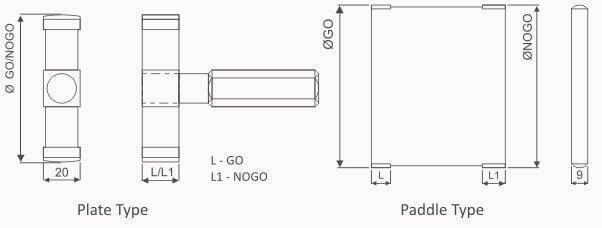

| Plate and paddle L/L1 (Carbide & Steel) | 25/20 | 25/20 | 30/25 | 30/25 |
* All figures in mm
Unique Features
 | High Durability |
| High Tensile Strength |
KCP Plain Plug Gauges are supplied with Calibration Certificate issued from its accredited calibration lab.
