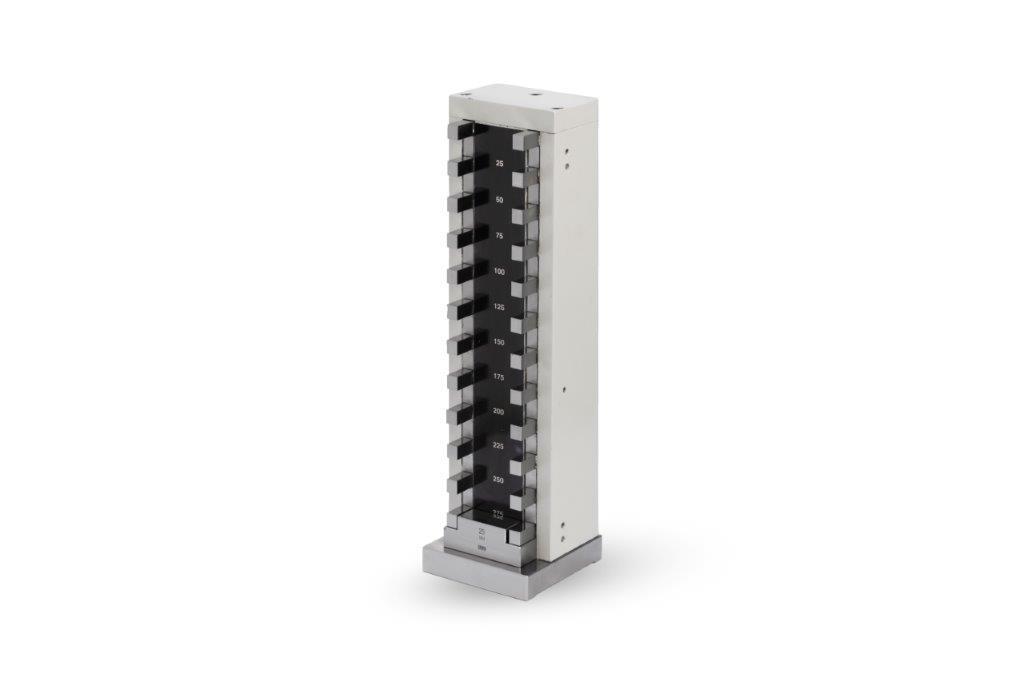

Depth Micro Checker

This Depth Micro checker is designed for efficient calibration and zero setting of Depth Micrometers

	up to 300mm
	Carbide \| Steel \| Ceramic

Metric & Imperial

Specifications

Product Information

Comprises of permanently wrung Gauge Blocks in a protective casting.
Gauge blocks are made of selected Alloy Steel and Tungsten Carbide.
Gauge blocks are built-in the rigid frame to provide measuring in 25mm step in accordance with the travel range of micrometer head.
An anvil of 25mm is supplied to provide a reference point for calibration at desired step within the measuring range of the Checker.

Technical Specifications

Range	Measuring Steps	Accuracy (±)	Weight
150	0,25,…150 step 25	0.003	5kg
300	0,25,…300 step 25	0.005	12kg

* All figures in mm

Quick and reliable calibration

High-grade super finish

Greater wear resistance

KCP Depth Micro checker are supplied with Calibration Certificate issued from its accredited calibration lab.
