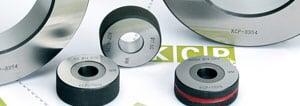

Plain & Master Setting Ring Gauges
Ring Gauges are ideal for measuring outside diameter of work pieces. A ring gauge is also effective to check out of roundness on the higher side. A master setting ring is used as a standard to set bore gauges, which can then be used to determine deviation from the master size.
 | 1- 300mm diameter |
 | Customization Available |
 | Carbide | Steel |
 | Metric & Imperial |
 | IS: 3455 (standard for manufacturing tolerance) |
Specifications
Product Information
- We offer a choice of choosing between GO and NO-GO both made in Tungsten Carbide/Steel and GO in Tungsten Carbide with NO-GO in Steel. The latter type is more popular owing to the cost advantage.
- We also manufacture Ring Gauges to relevant I.S., B.S. and DIN standards based on customer requests from 1- 300mm diameter.
- We are also specializing in non-standard designs such as extra lengths, multiple diameters, air grooves, pilots, depth steps and relieved NO-GO ends.
Technical Specifications

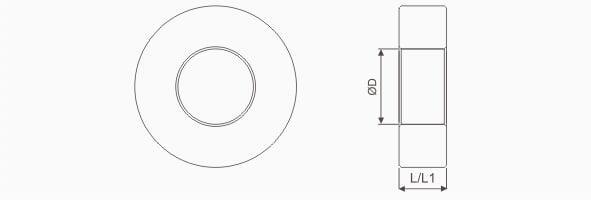

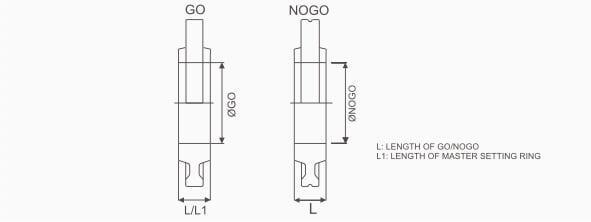

L: Length of Go/No Go member L1: Length of Master setting ring
| Material | Range | Ф 1 – 5 | Ф 5-10 | Ф 10- 25 | Ф 25 – 60 |
|---|---|---|---|---|---|
| Carbide | L/L1 | 5/10 | 10 | 15 | 20 |
* All figures in mm
L: Length of Go/No Go member L1: Length of Master setting ring
| Material | Range | Ф 1 – 5 | Ф 5-10 | Ф 10- 25 | Ф 25 – 40 | Ф 40 - 60 | Ф 60 – 100 |
|---|---|---|---|---|---|---|---|
| Steel | L/L1 | 5/10 | 10/15 | 15/20 | 20 /25 | 20/30 | 25/30 |
* All figures in mm
L: Length of Go/No Go member L1: Length of Master setting ring
| Material | Range | Ф 100-160 | Ф160-190 | Ф190-224 | Ф224-265 | Ф265-300 |
|---|---|---|---|---|---|---|
| Steel | L/L1 | 5/10 | 10/15 | 15/20 | 20 /25 | 20/30 |
* All figures in mm
Unique Features
 | High Durability |
| High Tensile Strength |
KCP Plain Ring Gauges are supplied with Calibration Certificate issued from its accredited calibration lab.
